TRM-203 Transformer Resistance Meter
----------部分中文介紹產(chǎn)品已停產(chǎn)或參數(shù)有變更，內(nèi)容僅供參考。

TRM-203

Transformer Resistance Meter
Part Number(s)
9060-UC
Download Links
TRM-203/403 Datasheet (English)
TRM-203/403 User's Manual (English)

The TRM-203 is a three phase transformer winding resistance meter that allow the user to connect all test cables to the transformer bushings. The unit will then measure the transformer resistance value for each of the phases without the need to disconnect and reconnect cables for each phase. The TRM-203 can provide a fast and stable reading of very large transformers by utilizing a 60Vdc power supply. It is capable of outputting a selectable test current from 1A to 20A. Since the TRM-203 can accurately measure resistance from 1 micro-ohm to 2000 Ohms, it can be used as a micro-ohm meter to measure EHV circuit breaker contact resistance, or for any low resistance measuring application.
  • Perform three phase test on a transformer without the need to switch cables
  • Can provide individual Delta winding resistance values
  • Can provide individual Wye (with no neutral) winding resistance values
  • Demagnetize transformer after test
  • Selectable test current from 1A to 20A
  • Computer control via RS-232C, USB, or Bluetooth interface
  • Built-in 2.5" wide thermal printer

TRM-203

Cables

TRM-203

Technical Specifications
TYPE Portable transformer winding resistance meter
PHYSICAL SPECIFICATIONS 21” W x 17” H x 9” D (53 cm x 43 cm x 24 cm); Weight: 35 lbs (15.8Kg)
OPERATING VOLTAGE 100 – 240 Vac, 50/60 Hz
RESISTANCE READING RANGE 1 micro-ohm to 2000 Ohms
ACCURACY 1 – 19,999 micro-ohms: ±0.5% reading, ±1 count
20 – 999 milliohms: ±1% reading, ±1 count
1 -2000 Ohms: ±1.5% reading, ±1 count
TEST CURRENT 1-20A in 1A increments
TEST VOLTAGE 60 Vdc charging, 18V DC max during measurement
INPUT CHANNELS 4 input channels for measuring resistance
DISPLAY Back-lit LCD (128 x 64 pixels), viewable in direct sunlight and low light levels
PRINTER Built-in 2.5" wide thermal printer
INTERNAL DATA STORAGE 256 static test records (each can contain up to 111 readings) and 120 dynamic test records
EXTERNAL DATA STORAGE Up to 999 test records on external USB Flash drive.
COMPUTER INTERFACES RS-232C, USB, Bluetooth
SAFETY
ENVIRONMENT Operating: -10oC to 50oC (15oF to +122oF)
Storage: (-30oC to 70oC (-22oF to +158oF)
HUMIDITY (MAX) 90% RH @ 40 C (104 F) non-condensing
ALTITUDE (MAX) 2000m (6562 ft) to full safety specifications
CABLES Four 50-foot test cables, one LTC control cable, one ground cable, one power cord, one USB cable
OPTIONS Shipping Case
WARRANTY One year on parts and labor
Specifications are valid at nominal voltage and ambient temperature of +25C (+77F).

Field Pictures

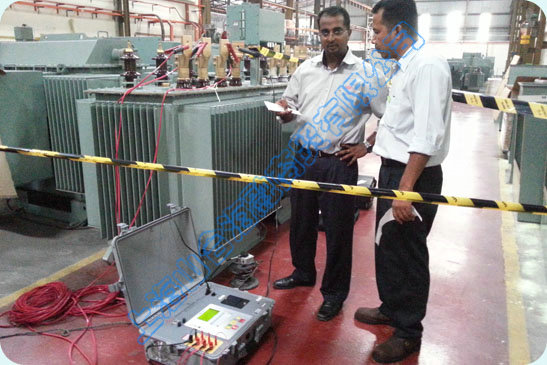

TRM-203 in Malaysia
