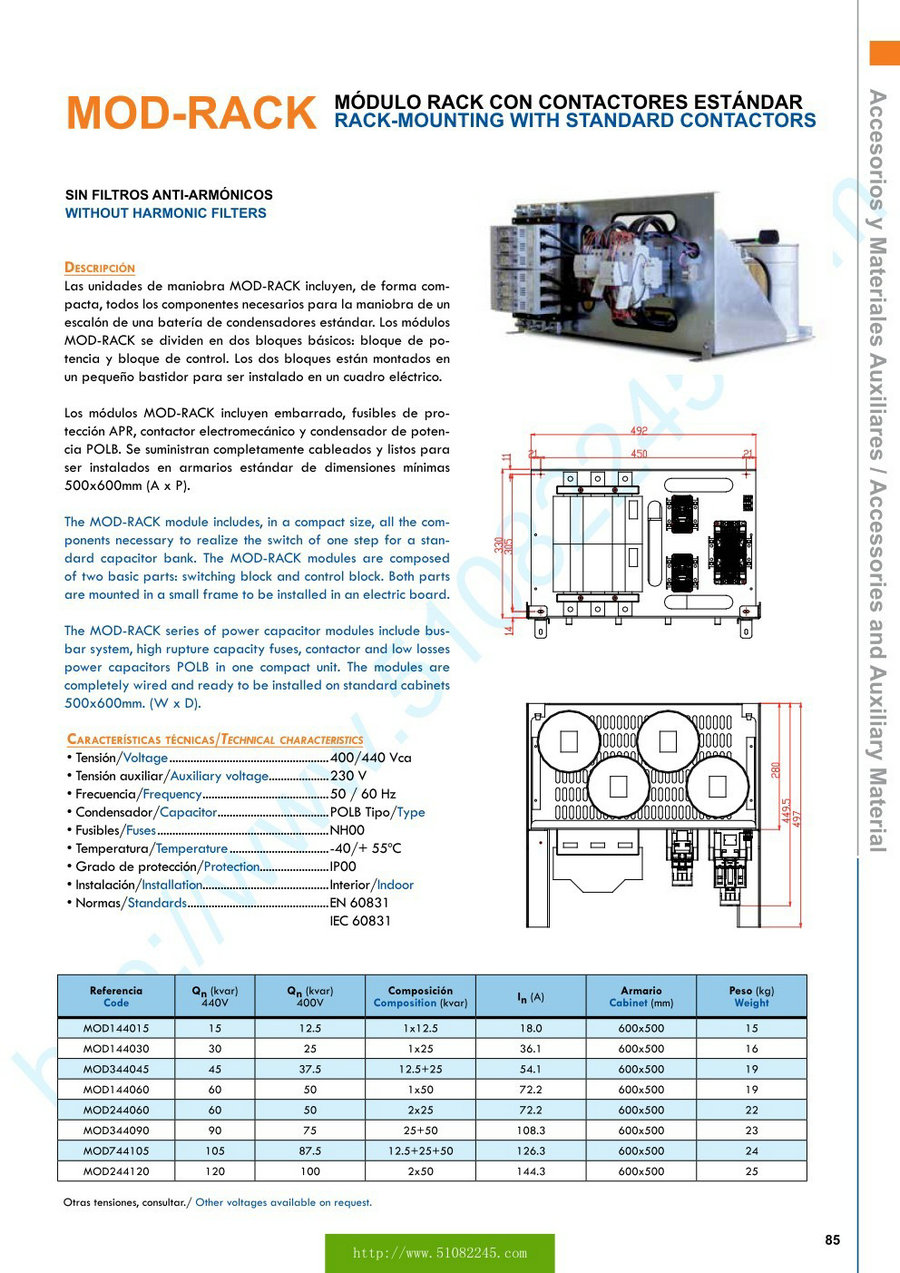

MOD-RACK RACK-MOUNTING WITH STANDARD CONTACTORS
WITHOUT HARMONIC FILTERS
The MOD-RACK module includes, in a compact size, all the components necessary to realize the switch of one step for a standard capacitor bank. The MOD-RACK modules are composed
of two basic parts: switching block and control block. Both parts
are mounted in a small frame to be installed in an electric board.
The MOD-RACK series of power capacitor modules include busbar system, high rupture capacity fuses, contactor and low losses
power capacitors POLB in one compact unit. The modules are
completely wired and ready to be installed on standard cabinets
500x600mm. (W x D).
c aracterísticas técnicas /t eChniCal CharaCteristiCs
Tensión/Voltage .....................................................400/440 Vca
Tensión auxiliar/Auxiliary voltage....................230 V
Frecuencia/Frequency ..........................................50 / 60 Hz
Condensador/Capacitor .....................................POLB Tipo/Type
Fusibles/Fuses .........................................................NH00
Temperatura/Temperature .................................-40/+ 55oC
Grado de protección/Protection .......................
Instalación/Installation ..........................................Interior/Indoor
Normas/Standards ...............................................

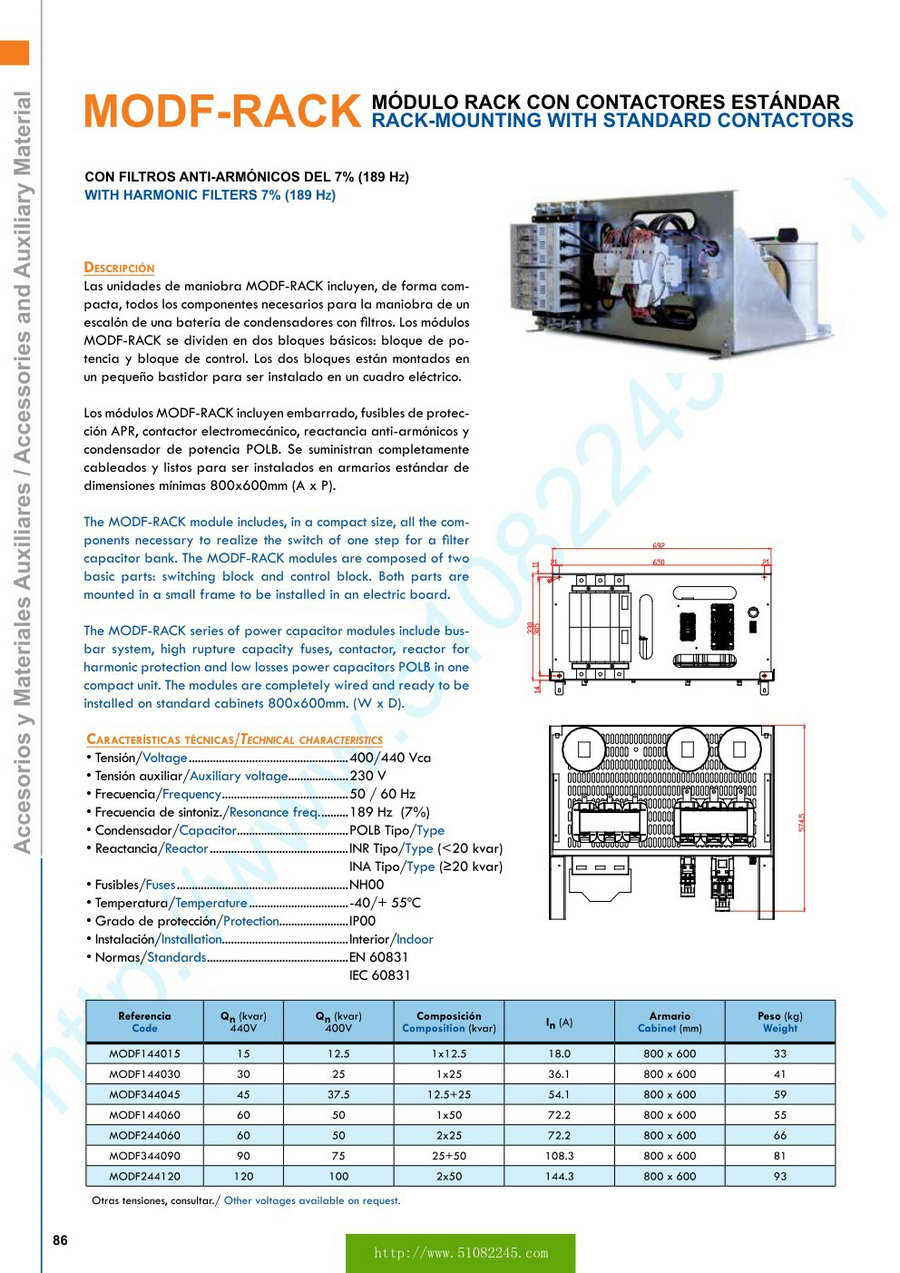

WITH HARMONIC FILTERS 7% (189 HZ )
The MODF-RACK module includes, in a compact size, all the components necessary to realize the switch of one step for a filter
capacitor bank. The MODF-RACK modules are composed of two
basic parts: switching block and control block. Both parts are
mounted in a small frame to be installed in an electric board.
The MODF-RACK series of power capacitor modules include busbar system, high rupture capacity fuses, contactor, reactor for
harmonic protection and low losses power capacitors POLB in one
compact unit. The modules are completely wired and ready to be
installed on standard cabinets 800x600mm. (W x D).
c aracterísticas técnicas /t eChniCal CharaCteristiCs
Tensión/Voltage .....................................................400/440 Vca
Tensión auxiliar/Auxiliary voltage....................230 V
Frecuencia/Frequency ..........................................50 / 60 Hz
Frecuencia de sintoniz./Resonance freq. .........189 Hz (7%)
Condensador/Capacitor .....................................POLB Tipo/Type
Reactancia/Reactor ..............................................INR Tipo/Type (<20 kvar)
INA Tipo/Type (≥20 kvar)
Fusibles/Fuses .........................................................NH00
Temperatura/Temperature .................................-40/+ 55oC
Grado de protección/Protection .......................
Instalación/Installation ..........................................Interior/Indoor
Normas/Standards ...............................................
MOD-RACK RACK-MOUNTING WITH STANDARD CONTACTORS
WITHOUT HARMONIC FILTERS
MOD144015 MOD144030 MOD344045 MOD144060 MOD244060 MOD344090 MOD744105 MOD244120
WITH HARMONIC FILTERS 7% (189 H Z )
MODF144015 MODF144030 MODF344045 MODF144060 MODF244060 MODF344090
|
