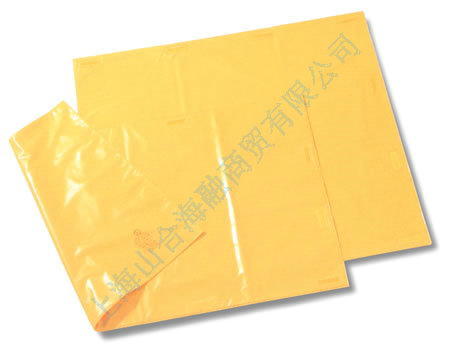

HIGH VOLTAGE PLASTIC INSULATING SHEETS高壓塑料絕緣毯/絕緣墊

HIGH VOLTAGE PLASTIC INSULATING SHEETS

The PLASTIC INSULATING SHEETS are used as a portable protective device for protection of electrical workers from accidental contact with live electrical conductors, apparatus, or circuits.
塑料絕緣毯采用EVA材料制作，是一款便攜式保護裝置，用于防止電力操作人員意外觸碰帶電的電導體，裝置，或電路。
The PLASTIC INSULATING SHEETS which substitute for rubber insulating products, are very light and are easy to use compared with rubber insulating products.
EVA材料制作的EVA材料制作跟橡膠絕緣毯相比，具有絕緣性能強，機械強度適中，輕便的特點，WQ可以替代橡膠絕緣毯。

ITEM NO.
型號		 SIZE
尺寸		 A.C.PROOF TEST VOLTAGE
測試電壓 		A.C.MAXIMUM USE VOLTAGE
Z大使用電壓
YS203-11-01 600x1000 20KV / 1min 7000V
YS203-11-02 680x800 20KV / 1min 7000V
YS203-11-03 680x800 20KV / 1min 7000V
YS203-11-04 900x1000 20KV / 1min 7000V
YS203-11-05 800x1000 20KV / 1min 7000V
YS203-11-06 600x1000 20KV / 1min 7000V
YS203-11-20 700x1500 20KV / 1min 7000V
YS241-01-01 600x1000 20KV / 3min 17000V
YS241-01-02 680x800 20KV / 3min 17000V
YS241-01-03 680x1200 20KV / 3min 17000V
YS241-01-04 800x1000 20KV / 3min 17000V
YS241-01-05 900x1000 20KV / 3min 17000V
YS242-01-01 600x1000 30KV / 3min 26500V
YS242-01-02 680x800 30KV / 3min 26500V
YS242-01-03 680x1200 30KV / 3min 26500V
YS242-01-04 800x1000 30KV / 3min 26500V
YS242-01-05 900x1000 30KV / 3min 26500V

LOW VOLTAGE PLASTIC INSULATING SHEETS低壓塑料絕緣毯/絕緣墊

LOW VOLTAGE PLASTIC INSULATING SHEETS
ITEM NO.
型號		 SIZE
尺寸		 A.C.PROOF TEST VOLTAGE
測試電壓 		A.C.MAXIMUM USE VOLTAGE
Z大使用電壓
YS209-01-01 400x800 3KV / 1min 600V
YS209-01-02 500x1000 3KV / 1min 600V
YS209-01-03 600x1000 3KV / 1min 600V

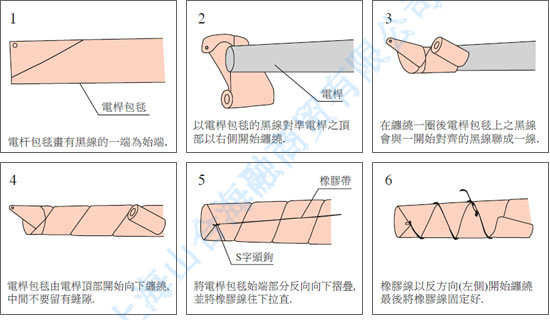

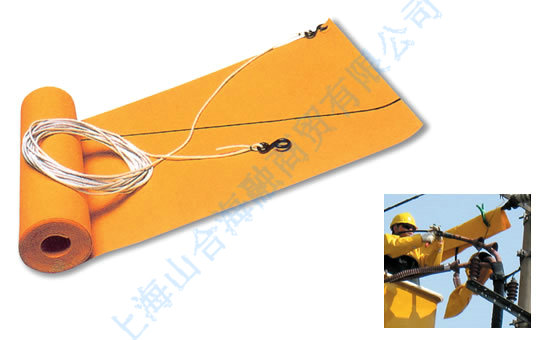

PLASTIC INSULATING SHEET FOR POLE塑料絕緣包毯

PLASTIC INSULATING SHEET FOR POLE
ITEM NO.
型號		 SIZE
尺寸		 A.C.PROOF TEST VOLTAGE
測試電壓 		A.C.MAXIMUM USE VOLTAGE
Z大使用電壓
YS430-01-01 410mmx4.5m 20KV / 1min 7000V
YS435-01-01 410mmx4.5m 20KV / 3min 17000V
YS207-02-01 410mmx8m 20KV / 1min 7000V
YS435-02-02 410mmx8m 20KV / 3min 17000V
PLASTIC INSULATING SHEET FOR POLE
