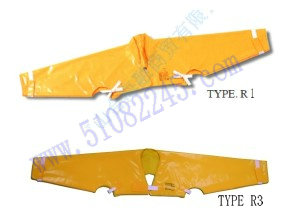

HIGH VOLTAGE PLASTIC INSULATING JACKETS高壓塑料絕緣夾克（絕緣衣）
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ITEM NO. 型號 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 測試電壓 |
A.C.MAXIMUM USE VOLTAGE Z大使用電壓 |
APPLICABLE 適用 |
|---|---|---|---|---|
| YS121-01-03 | L | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料絕緣夾克/絕緣衣 |
| YS121-01-04 | M | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料絕緣夾克/絕緣衣 |
| YS121-01-05 | S | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料絕緣夾克/絕緣衣 |
| YS126-01-05 | L | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料絕緣夾克/絕緣衣 |
| YS126-01-04 | M | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料絕緣夾克/絕緣衣 |
| YS126-01-03 | S | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料絕緣夾克/絕緣衣 |
| YS126-08-04 | L | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R3 R3型塑料絕緣夾克/絕緣衣 |
| YS126-08-03 | M | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R3 R3型塑料絕緣夾克/絕緣衣 |
| YS126-08-02 | S | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R3 R3型塑料絕緣夾克/絕緣衣 |
EVA INSULATING JACKETS TYPE-J5 EVA絕緣衣/絕緣夾克J5型
The EVA INSULATING JACKETS are used for protection of electrical workers from electric shock while working on a live electric line.
EVA絕緣衣/絕緣夾克J5型是用于防止電力操作人員在帶電操作時受到電擊的危險。
These are structured by external sheets coated nylon cloth with E.V.A. (Ethylene-Vinyl Acetate copolymers) has high insulation property and internal E.V.A. films, these have moderate mechanical strength and enough pliability.
EVA絕緣衣/絕緣夾克J5型外面采用E.V.A（乙烯-醋酸乙烯酯共聚物-即聚乙烯材料）尼龍涂面，具有很強的絕緣性能，里面的一層E.V.A層具有中等機械強度和足夠的KK性。
| ITEM NO. 型號 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 測試電壓 |
A.C.MAXIMUM USE VOLTAGE Z大使用電壓 |
|---|---|---|---|
| YS-121-39-04 | L | 20kV/1min | 7000V |
| YS-121-39-03 | M | 20kV/1min | 7000V |
| YS-121-39-02 | S | 20kV/1min | 7000V |
| YS-124-06-04 | L | 20kV/3min | 17000V |
| YS-124-06-03 | M | 20kV/3min | 17000V |
| YS-124-06-02 | S | 20kV/3min | 17000V |
| YS-124-07-04 | L | 30kV/3min | 26500V |
| YS-124-07-03 | M | 30kV/3min | 26500V |
| YS-124-07-02 | S | 30kV/3min | 26500V |

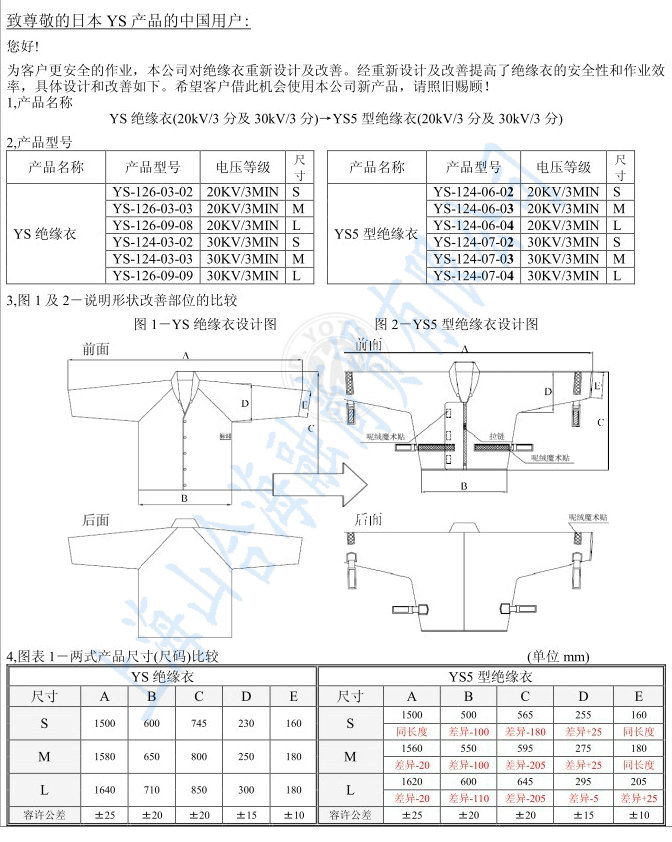

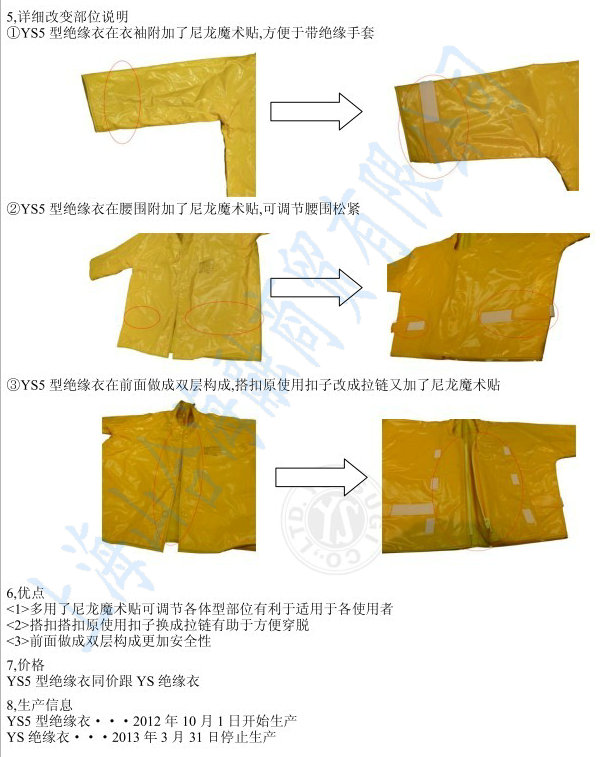

| 日本YS生產(chǎn)的20KV/3MIN和30KV/3MIN絕緣衣已重新設(shè)計，具體替代型號如下： 原型號YS-126-03-02 20KV/3MIN S → 新型號YS-124-06-02 20KV/3MIN S 原型號YS-126-03-03 20KV/3MIN M → 新型號YS-124-06-03 20KV/3MIN M 原型號YS-126-09-08 20KV/3MIN L → 新型號YS-124-06-04 20KV/3MIN L 原型號YS-124-03-02 30KV/3MIN S → 新型號YS-124-07-02 30KV/3MIN S 原型號YS-124-03-03 30KV/3MIN M → 新型號YS-124-07-03 30KV/3MIN M 原型號YS-126-09-09 30KV/3MIN L → 新型號YS-124-07-04 30KV/3MIN L   |
|||

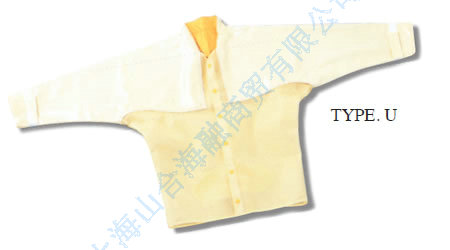

HIGH VOLTAGE PLASTIC INSULATING JACKETS高壓塑料絕緣衣/絕緣夾克
TYPE U（U型）
| ITEM NO. 型號 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 測試電壓 |
A.C.MAXIMUM USE VOLTAGE Z大使用電壓 |
APPLICABLE 適用 |
|---|---|---|---|---|
| YS126-09-05 | L | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料絕緣衣/絕緣夾克 |
| YS121-04-13 | M | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料絕緣衣/絕緣夾克 |
| YS121-04-19 | S | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料絕緣衣/絕緣夾克 |
| YS126-09-06 | L | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料絕緣衣/絕緣夾克 |
| YS126-02-04 | M | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料絕緣衣/絕緣夾克 |
| YS126-02-03 | S | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料絕緣衣/絕緣夾克 |

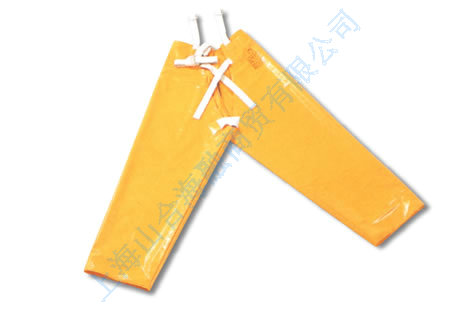

HIGH VOLTAGE PLASTIC INSULATING TROUSERS高壓塑料絕緣褲
| ITEM NO. 型號 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 測試電壓 |
A.C.MAXIMUM USE VOLTAGE Z大使用電壓 |
APPLICABLE 適用 |
|---|---|---|---|---|
| YS128-01-05 | L | 20KV / 1min | 7000V | PLASTIC INSULATING TROUSERS 高壓塑料絕緣褲 |
| YS122-01-01 | M | 20KV / 1min | 7000V | PLASTIC INSULATING TROUSERS 高壓塑料絕緣褲 |
| YS122-01-02 | S | 20KV / 1min | 7000V | PLASTIC INSULATING TROUSERS 高壓塑料絕緣褲 |
| YS128-01-06 | L | 20KV / 3min | 17000V | PLASTIC INSULATING TROUSERS 高壓塑料絕緣褲 |
| YS127-01-04 | M | 20KV / 3min | 17000V | PLASTIC INSULATING TROUSERS 高壓塑料絕緣褲 |
| YS127-01-03 | S | 20KV / 3min | 17000V | PLASTIC INSULATING TROUSERS 高壓塑料絕緣褲 |
| YS128-01-07 | L | 30KV / 3min | 26500V | PLASTIC INSULATING TROUSERS 高壓塑料絕緣褲 |
| YS128-01-04 | M | 30KV / 3min | 26500V | PLASTIC INSULATING TROUSERS 高壓塑料絕緣褲 |
| YS128-01-03 | S | 30KV / 3min | 26500V | PLASTIC INSULATING TROUSERS 高壓塑料絕緣褲 |
