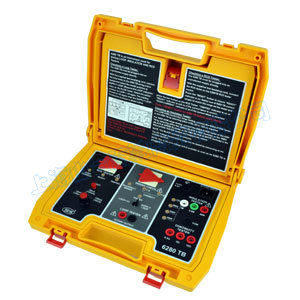

6280 TB Test Box
Functional checking for RCD tester, Loop testers and Insulation/Continuity testers

6280 TB

FEATURES

Wide range of operating voltage from AC 210V/50Hz to 250V/50Hz.
For checking AC voltage.
For checking a RCD tester's test current & time in mA(ms).
For checking a loop tester.
For wiring check (Phase, Neutral, Earth).
For checking continuity.
For checking insulation (The maximum is 1000V).

6280 TB is an ideal tool which provides verifications of Insulation testers, Continuity testers, RCD testers and Loop testers.

SPECIFICATIONS

RCD Testing
Range	10mA @ 150ms
	30mA @ 150ms
	150mA @ 30ms

Insulation Testing
Range	1M Ohm/9.9M Ohm/99M Ohm
Accuracy	+/- 1%
Max. Testing	1.2kV

Continuity Testing
Range	0.5 Ohm/2 Ohm/10 Ohm
Accuracy	+/- 0.05 Ohm / +/- 0.1 Ohm / +/-0.2 Ohm
Max. Current	300mA

LOOP Testing
Range	Supply Loop/Supply Loop +1 Ohm
Accuracy	0.45 Ohm +/- 0.05 Ohm / 1.45 Ohm +/- 0.05 Ohm

Dimension	330 (L) x 260 (W) x 160 (D) mm
Weight	Approx. 2570 g
