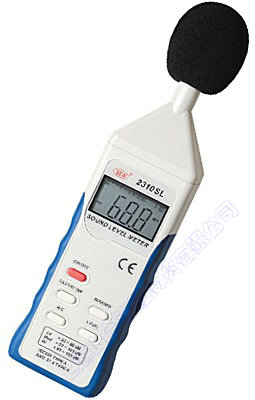

                                                  | 2310 SL   Sound Level Meter |
                                                  |  |  |


                                                  | FEATURES |
                                                  |  |
                                                  |  Max. & Min. function. |
                                                  |  Over & Under range indication. |
                                                  |  4-digit LCD display with bar graph. |
                                                  |  Frequency weighting characteristic for 2 times per second. |
                                                  |  AC signal output. |
                                                  |  Low battery indication. |
                                                  |  |  |
                                            |  |
                                            |

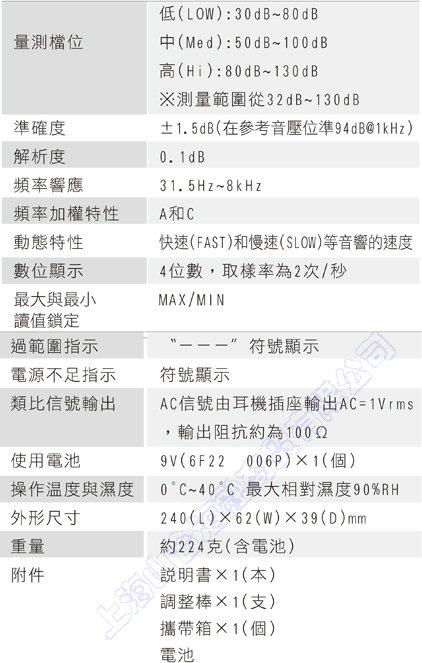

                                                  | SPECIFICATIONS |
                                                  |  |
                                                  | Measuring Ranges | Lo : 32dB ~ 80dB |
                                                  |  | Med : 50dB ~ 100dB |
                                                  |  | Hi : 80dB ~ 130dB |
                                                  | Accuracy | +/- 1.5dB (at Reference Range) |
                                                  | Reference Sound Level & requency | 94dB, 1k Hz |
                                                  | Resolution | 0.1dB |
                                                  | Detector-Indicator Characteristic | Fast : 125ms, Slow : 1s |
                                                  | Analog Signal Output | AC 1Vrms for each range |
                                                  | Dimensions | 235(L) x 58.4(W) x 34(D)mm |
                                                  | Weight (prox) | 220g (battery included) |
                                                  | Power Source | 9V (6F22.006P) x 1 battery |
                                                  | Accessories | Instruction manual |
                                                  |  | Adjusting bar |
                                                  |  | Battery |
                                                  |  | Sponge cover |
                                                  |  | Heavy-duty case |  |  |
