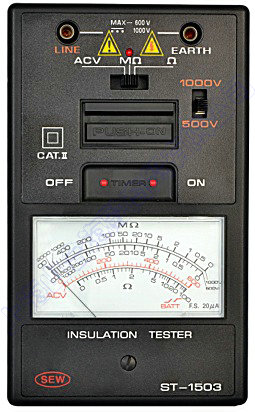

ST-1503 Insulation Testers
Up To 1 kV (Analog)
|
 |
|
|
FEATURES |
| |
 High quality Tau Band movement. |
| It is a light and portable combination instrument for testing insulation (M Ohm). continuity (Ohm) and AC voltage. |
| Instant operation is possible with a pushbutton, in addition, for continuous measurement of M Ohm or Ohm, a convenient timer is provided with automatic power off after three to five minutes to save the battery power. |
| LED (red) indication when testing insulation and continuity. |
| Use of a high efficiency and accurate DC-DC converter. |
| Most suitable for insulation resistance measurement of electrical household appliances, power line distribution and installation. |
| CAT II 600V. |
|
|
|
| SPECIFICATIONS |
| |
| INSULATION RESISTANCE |
|
| Test Voltage (DC V) |
500V/1000V |
| Output Voltage on Open Circuit |
+ 10% |
| Measuring Ranges (Mid-Scale Value) |
0-1000M Ohm (20M Ohm))/0-2000M Ohm (40M Ohm) |
| Accuracy |
+/- 5% of scale length |
| Short Circuit Current |
1mA |
| Maximum Battery Current |
Approx. 80mA (500V), 150mA (1000V) |
| CONTINUITY |
|
| Measuring Range |
0-100 Ohm |
| Line Frequency Range |
40-70Hz |
| Open Circuit Voltage |
100mV |
| Short Circuit Current |
22.5mA |
| Accuracy |
+/- 5% of scale length |
| AC VOLTAGE |
|
| AC Voltage Range |
0-600V AC |
| Accuracy |
+/- 2.5% of full scale |
| GENERAL |
|
| Power Source |
1.5V(SUM-3) x 6 Type AA |
| Dimensions |
163(L) x 100(W) x 50(D)mm |
| Weight |
Approx. 440g (battery included) |
| Accessories |
Test leads, instruction manual, heavy-duty case, batteries |
|
| 特 點 |
● 吊線式高品質防震錶頭。
● 可做絕緣阻抗(MΩ)、導通測試(Ω)和交流電壓量測(ACV)。
● 絕緣阻抗二檔量測電壓：500V、1000V。
● 量測MΩ和Ω時，同時壓下："PUSH-ON"和
"TIMER ON"可作長時間量測，約5分鐘後自動關機。
● 量測MΩ和Ω時，紅燈(LED)會亮，顯示正在執行工作。
● 關機後自動放電。
● 輕巧堅固，方便使用和儲存。
● 符合 CAT Ⅱ 600V。 |
|
| 規 格 (23°C±5°C ＜80%R.H.) |
| 絕緣阻抗(MΩ) |
|
|
| 量測檔位 |
500V / 1000V |
| 量測電壓Z容許 |
額定電壓+10% |
| 量測範圍 |
0-1000MΩ / 0-2000MΩ
(20MΩ) / (40MΩ) |
| 準確度 |
± 5%讀值 |
| 短路電流 |
1mA |
| 導通測試(Ω) |
|
|
| 測試檔位 |
0-100Ω |
| 短路電流 |
22.5mA |
| 精確度 |
± 5% 刻度長 |
| 交流電壓(ACV) |
|
|
| 量測範圍 |
0-600V AC |
| 精確度 |
± 2.5% 滿刻度 |
| 一般敘述 |
|
|
| 外形尺寸 |
163(長)×100(寬)×50(高)mm |
| 重量 |
約440克(含電池) |
| 使用電池 |
1.5V (AA ) × 6 (顆) |
|
|
|
