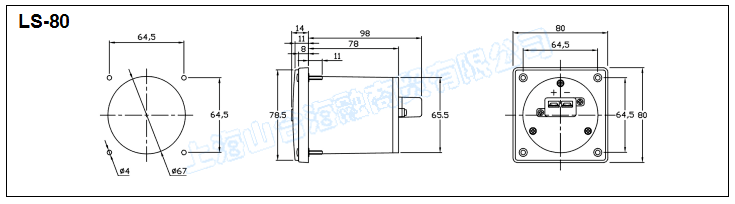

                                                  | LS-80   Panel Meters Wide Angle Scale Type
 |
                                                  |  |  |


                                                  | FEATURES |
                                                  |  |
                                                  |  Full Scale Deflection: 250 degrees |
                                                  |  Accuracy: Class 1.5 |
                                                  |  Length: 183mm |
                                                  |  Case and Composition: Acrylic resin cover, Plastic meter body, Bakelite terminal plate, Four stud mounting. |
                                                  |  Color: White scale plate, black terminal plate, gray meter body |
                                                  |  Pointer: Sword-type in black color |
                                                  |  Easy to read long-scales and pointer-indications can easily be read from a distance. |
                                                  |  , EN 61326-1 |
                                                  |  UL file no. E205318 project no. 00CA06290 |  |
