臺灣標準電機SEW儀器儀表--863 PR Phase Sequence Indicator

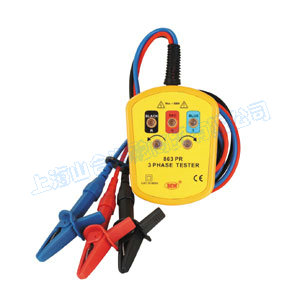

863 PR Phase Sequence Indicator

863 PR

FEATURES

Two functions in one unit. Including open phase, phase sequence.
Large size alligator clips. Can easily clip on switch-boards terminals.
Highly reliable. Identifies 3 phase sequence and open phase check.
Functional design. This model is ideal for installing conveyor lines, pump systems and interconnected drivers.
Water proof.
CAT III 600V.
Special test leads length are available on request.

SPECIFICATIONS

Input Voltage	100-600V AC
Frequency Range	45-70 Hz
Circuit Structure	All electronic (not mechanical)
AC Power Consumption	Approx. 7mA per phase rotation field indicator
Dimensions	102(L) x 78(W) x 32.5(D) mm
Weight	228g
Accessories	Vinyl case
	Instruction manual

特點

● 量測三相電源的相序和欠相狀況，在了解狀況後，再行正確接電，可確保不被燒毀和正常運作。
● 使用大型鱷魚夾，方便夾住端子。
● 適合馬達製造業(yè)、水電裝配業(yè)和電工電機人員運用。
● 測試線長度可隨客戶需要設計。
● 符合 CAT Ⅲ 500V

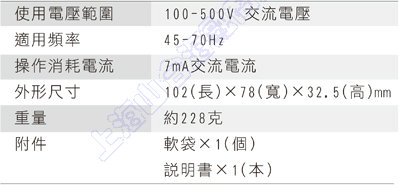

規(guī) 格
