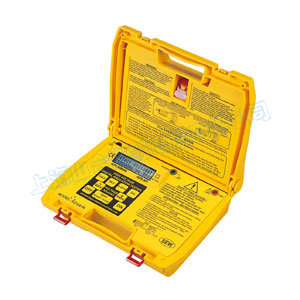

6212A IN Insulation Testers
Up To 10 kV
|
 |
|
|
FEATURES |
| |
 Microprocessor technology ensures high performance accuracy and reliability. |
| Insulation test voltages (0.5kV ~ 10kV). |
| Insulation resistance, suto ranging on all ranges. |
| Bargraph indicates test voltage, decay can be observed during discharge. |
| Measures insulation test time. |
| Display warning of external voltage. |
| Fully protected : crow bar. |
| Housed in heavy duty carry case. |
| EEPROM calibration. |
| Display test duration for easy comparison. |
| CAT III |
|
|
|
| SPECIFICATIONS |
| |
| Test Voltage (DC V) |
0.5kV to 10kV (0.5kV increment steps0 |
| iNSULATION rESISTANCE (Auto-RangING) |
25G Ohm/0.5kV, 25G Ohm at 0.5kV, 500G Ohm at 10kV |
| Accuracy |
+/- (3%rdg+/-1dgt) |
| Output Current Limit |
50uA to 100uA (1W) |
| Live Warning |
> 500V AC |
| Operating Temperature |
0 degree C ~ 40 degree C |
| Operating Humidity |
85% |
| Dimensions |
330(L) x 260(W) x 160(D)mm |
| Weight |
Approx. 3.6kg (battery included) |
| Power Source |
1.5V "C" x 8 Alkaline batteries |
| Accessories |
Test leads (AL-50+AL-30+AL-30C) |
| |
Instruction manual |
| |
Batteries |
|
| 特 點 |
 ● 使用微處理器系統控制設計
● 使用2(行)×16(字)液晶顯示器
● 液晶顯示器呈現斜度，方便識讀
● 設計有4個固定電壓檔位，可以視實際需要，每500V為一單位，予以增減
● 有20個測試電壓檔位：
500V，1kV，1.5kV，2kV，2.5kV，3kV，3.5kV，4kV，4,5kV，5kV，5.5kV，
6kV，6.5kV，7kV，7.5kV，8kV，8.5kV，9kV，9.5kV，10kV
● 自動換檔設計
● 省電功能設計
● 量測電壓有類比刻劃作指示
● 外來電壓(大於AC/DC 500V)警示設計
● 過載保護設計
● 量測時間顯示
● 電池電源不足顯示
● 自動關機
●
CATⅢ
|
|
| 規 格 (23°C±5°C ＜80%R.H.) |
| 控制方式 |
微處理器控制系統 |
| 量測檔位 |
500V~10kV : 每500V為一個單位，
可從固定電壓鍵(1kV, 2.5kV, 5kV,
10kV)作累加或遞減 |
| 固定測試電壓鍵 |
1kV, 2.5kV, 5kV, 10kV |
| 量測範圍 |
800kΩ~500GΩ(自動換檔)
25GΩ/0.5kV→500GΩ/10kV |
| 容許誤差 |
±3%讀值±1位數 |
| 外形尺寸 |
330(長)x260(寬)x160(高)mm |
| 重量 |
約3.6公斤 |
| 使用電池 |
1.5V “C”× 8 鹼性電池 |
|
|
|
