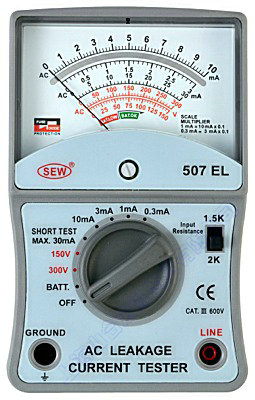

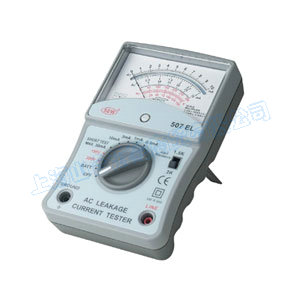

| 507 EL AC Leakage Meter
|
 |
|
|
FEATURES |
| |
 High quallity movement. |
| Small and lightweight, easy to use and storage. |
| Mirror scale : makes reading pointer easy. |
| With stand : makes reading and measuring easy. |
| 200uA full scale value. |
| Fuse protected. |
| Low battery indication. |
| Meets : CAT, III 600V |
|
| 506 EL and 507 EL are special purpose AC milliammeter designed to measure hazardous leakage current from electrical appliances and other power line operated equipment. |
| It's used for |
| moter operated appliances : Washing machine, electrical pump, lawn mower, refrigerator, electric drill, electric fan, vending machine. |
| Electrothermal appliances : Toaster, electric stove, electric curling iron, hair dryer. |
| Electronic appliances : Microwave ranges, TV receiver, welding machine. |
| Light source appliances : Projector, duplicator and photographic enlarger. |
| Other Appliances : Portable generator, burglar alarm, medical and dental equipment. |
|
| SPECIFICATIONS |
| |
| AC Leakage Currnet |
|
| Measuring Range |
0.3mA - 1mA - 3mA - 10mA - 30mA |
| Accuracy |
+/- 2% F.S. |
| Input Resistance |
1.5 K Ohm |
| AC Voltage |
|
| Measuring Range |
0-300 / 0-600V |
| Accuracy |
+/- 2% F.S. |
| Input Impedance |
300V 1M Ohm, 600V 2M Ohm |
| General |
|
| Low Battery Indication |
Battery check indicate good battery from 7VDC to 9VDC during a load test of 2mA |
| Dimensions |
160(L) x 100(W) x 45(D) mm |
| Weight (Battery Included) |
360 g |
| Power Source |
9V(006P) x 1 battery |
| Accessories |
Test leads, Battery, Instruction Manual |
|
|
| 特 點 |
 ● 使用高品質的表頭。
● 體積小、重量輕、易於掌握使用。
● 彩色刻度板，方便識讀。
● 腳架設計,方便使用。
● 保險絲保護設計。
● 量測電源大小設計。
● 符合安規條款：
CAT.Ⅲ 600V
|
|

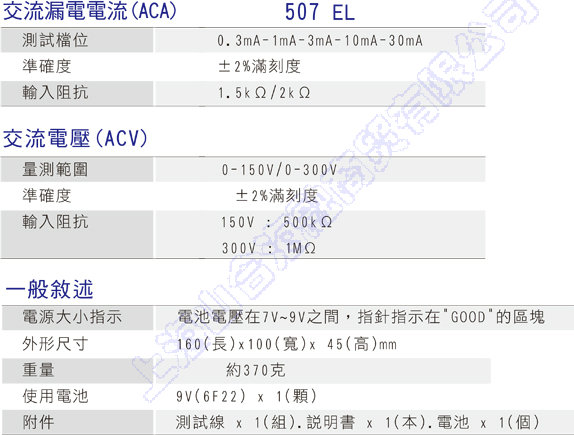

| 規 格 (23°C±5°C ＜80%R.H.) |
 |
|
