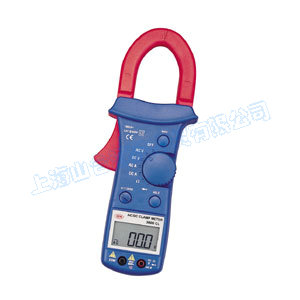

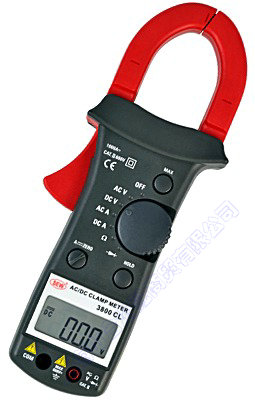

臺灣標準電機SEW儀器儀表--3800 CL AC/DC Digital Clamp Meter (Auto Range)

3800 CL Clamp Meters
Digital Clamp Meter
AC/DC Digital Clamp Meter (Auto Range)

FEATURES

Full auto range for V.A and Ohm functions.
Data hold function freezes the reading in dimly lit or hard to reach places.
Low battery indication.
Built-in buzzer for continuity test.
Safety design throughout with no exposed metal parts. Shielded banana plugs and recessed input terminals.
Ohm function ideal for checking continuity of relays transformers and motor coils.

SPECIFICATIONS

ACA	400/1000A +/- (1.5%rdg+3dgt): 400-500Hz
ACV	400/600V +/- (1.0%rdg+3dgt): 40-500Hz
DCA	400/1000A +/- (1.5%rdg+3dgt)
DCV	400/600V +/- (0.75%rdg+3dgt)
Ohm	2000 Ohm +/- (1.0%rdg+3dgt)
Buzzer Sounds	< 100 Ohm
Conductor Size	40mm Max.
Low Battery Indication	yes
Dimensions	255(L) x 80(W) x 35(H) mm
Weight	Appox. 420g (battery included)
Power Source	9V (6F22.006P) x 1 battery
Accessories	Test leads (TEL-AL28-1), carrying case (CAC-3600), instruction manual, battery
Safety Standard	, CAT III 600V

特點

● 供量測電壓、電流和導通測試。
● 具有數值鎖定功能、在昏暗處或不方便識讀地方量測，可將量測值鎖定，再移至光亮處
或方便處識讀。
● 均為自動換檔。
● 導通測試時，設計有蜂鳴器響應功能。
● 低電源顯示。
●

規 格 (23°C±5°C ＜80%R.H.)
