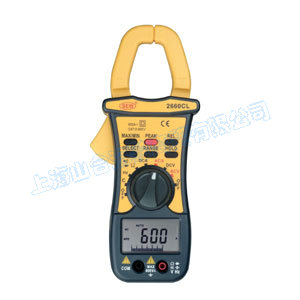

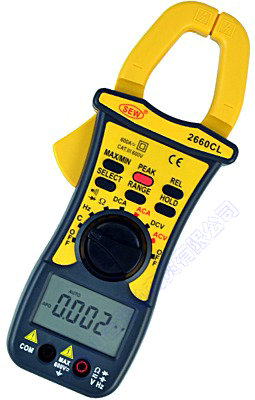

2660 CL Clamp Meters
Digital Clamp Meter
AC/DC Digital Clamp Meter (Auto Range)
|
 |
|
|
FEATURES |
| |
 4000 - count LCD. |
| Full automatic measurement, Voltage measurement, Current measurement, Resistor measurement, Frequency counter, Capacitor measurement. |
| Bargraph indication. |
| Range change function. |
| Data Hold function feezes the reading. |
| REL function. |
| Peak function. |
| VAHz mode measures frequency in ACV and ACA mode. |
| Diode measurement. |
| Max/Min function. |
| Continuity check. |
| Low battery indication. |
| Auto Power Off (APO) function. |
| Safety design throughout with no exposed metal parts, shielded banana plugs and recessed input terminals. |
| Meets : CAT III 300V, , |
| Dimensions : 210(L) x 90(W) x 40(H) mm |
| Weight : Approx. 330g (battery included) |
| Power Source : One type PP3, 6F22, 006P (or equivalent), 9V manganese. |
| Battery Life : Approx. 100 hours on continuous. (Alkaline) |
| Accessories : Test leads, carrying case, instruction manual battery (one 006P 9V). |
|
| Conductor size : Approx. 35mm max. |
| Operating principle : Dual slope integration. |
| Over range indicaton : "O.L" indicated |
| Low battery indication : sign appears on the display when the battery voltage drops below actcurate operating level. |
| Response time : Approx. 1 second. |
| Sample rate : Approx. 2 times per second. |
| Temperature & humidity for guaranteed : 0 degree C to 50 degree C 80% max. |
| Storage temperature & humidity : -10 degree C to 60 degree C 80% max. |
|
| SPECIFICATIONS |
| |
| DC VOLTAGE : |
Overload protection : 650V DC |
| 400 mV |
Resolution : 0.1 mV, Accuracy : +/- (1.0%rdg+3dgt) |
| 4 V |
Resolution 1 mV, Accuracy : +/- (1.0%rdg+3dgt) |
| 40V |
Resolution : 10 mV, Accuracy : +/- (1.0%rdg+3dgt) |
| 400V |
Resolution : 100 mV, Accuracy : +/- (1.0%rdg+3dgt) |
| 600V |
Resolution : 1 V, Accuracy : +/- (1.0%rdg+3dgt) |
| AC VOLTAGE : |
Overload protection : 650V AC rms |
| 400 mV |
Resolution : 0.1 mV, Accuracy : +/- (2.0%rdg+3dgt) |
| 4 V |
Resolution : 1 mV, Accuracy : +/- (1.5%rdg+3dgt) |
| 40 V |
Resolution : 10 mV, Accuracy : +/- (1.5%rdg+3dgt) |
| 400 V |
Resolution : 100 mV, Accuracy : +/- (1.5%rdg+3dgt) |
| 600 V |
Resolution : 1 V, Accuracy : +/- (1.5%rdg+3dgt) |
| |
Frequency Response : 0 ~ 400 mV at 40 Hz ~ 120 Hz, 4V ~ 600V at 40 Hz ~ 500 Hz |
| AC CURRENT |
|
| 400 A |
Resolution : 0.1 A, Accuracy : +/- (1.5%rdg+4dgt) |
| 600 A |
Resolution : 1 A, Accuracy : +/- (1.5%rdg+4dgt) |
| |
Frequency Response : 40 Hz ~ 500 Hz |
| DC CURRENT |
|
| 400 A |
Resolution : 0.1 A, Accuracy : +/- (1.5%rdg+4dgt) |
| 600 A |
Resolution : 1 A, Accuracy : +/- (2.0%rdg+4dgt) |
|
| 特 點 |
 ●3  位 LED (Z大顯示3999)
● 可量測交流電壓電流，直流電壓電流，電阻、頻率、二極體、電容等多項。
● 類比刻劃顯示
● 檔位選擇功能
●讀值鎖定功能
● 峰值鎖定功能
● Z大值/Z小值功能
● 導通測試功能
● 自動關機功能
● 電池不足顯示
● CATIII 600V
|
|

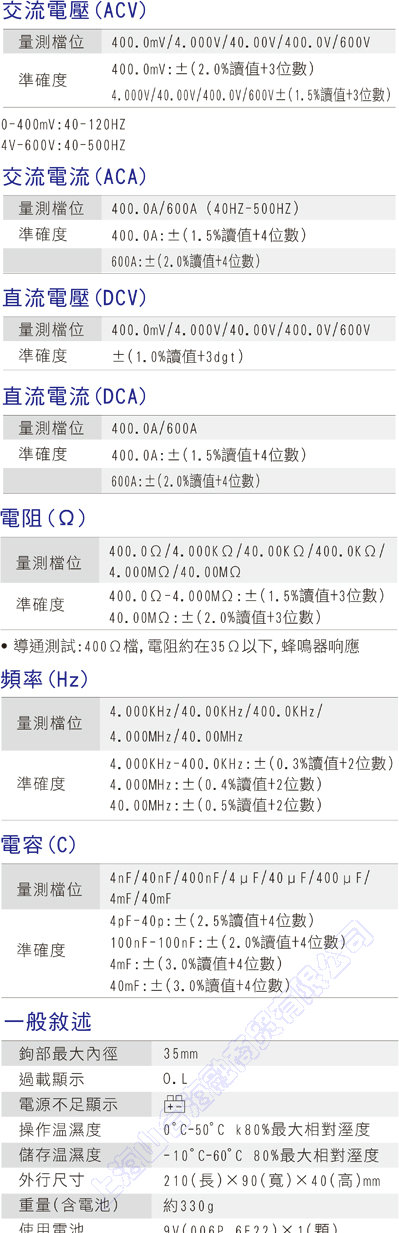

| 規 格 (23°C±5°C ＜80%R.H.) |
 |
|
