| SPECIFICATIONS |
| |
| Frequency Detection |
Amplifier Probe ; 1Hz ~ 12 kHZ, Tone Generator: 1 kHz +/- 15% |
| Over Protection |
Tone Generator : 80 VDC |
| Tone |
Alternation tone, fast and slow |
| Connection |
Amplifier Probe : Audio jack, Tone Generator : RJ11 |
| Sensitivity Control |
yes |
| Receiver Distance |
< 50 cm |
| Operating Temperature & Humidity |
0 degree C ~ 40 degree C, 80% Max |
| Temperature & Humidity |
Operating : 0 degree C ~ 50 degree C <= 80% R.H. |
| |
Storage : -10 degree C ~ 60 degree C <= 80% R.H. |
| Power Source |
Amplifier Probe : 9V battery |
| |
Tone Generator : 9V battery |
| |
DMM : 1.5V x 2 (AAA) |
| Dimensions |
Amplifier Probe : 270 (L) x 50 (W) x 25 (D) mm |
| |
Tone Generator/DMM : 183 (L) x 82 (W) x 44 (D) |
| Weight |
Amplifier Probe : 125g, Tone Generator/DMM : 305g |
| Safety standards |
|
| Accessories |
Test leads (AL-24-1) |
| |
Carrying case |
| |
Batteries |
| |
Instruction Manual |

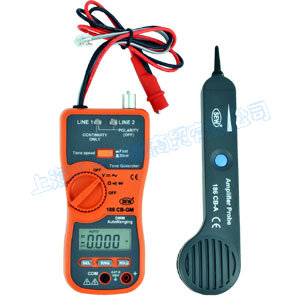

CABLE TRACER
