臺灣標準電機SEW儀器儀表--183 CB Cable Tracer

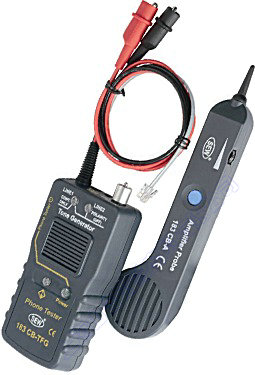

183 CB Cable Tracer

FEATURES

AMPLIFIER PROBE (183 CB-A)
The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation.
Works with any Tone Genertor to identify wires.
Volume control for increased sensitivity and adjustable to suit various work environments.
Recessed ON/OFF button prevents battery drain.
Power supply is in any 9V battery with a life of approximately 100 hours.
A phone jack is designed for headset or handset.
PHONE TESTER / GENERATOR (183 CB-TFG)
Phone Tester / Generator is a great tool fo locating and identifying cable pairs or individual conductors.
183CB-TFG does not only provide the function of a tone generator, but also serves as a condinuity and polarity tester.
A tone selector switch located inside the unit for selection of the fast tone or slow tone.
Two bi-colored LEDs for Line 1 and Line 2 indication of the polarities of the telephone lines.
The unit has alligator-type terminals and a modular cable of 4 conductors with a strong Connector.
The tone and continuity functions are only applied to Line 1. (modular connector)

THE FUNCTINOS OF PHONE TESTER :

Continuity and resistance testing of voltage free jbjects.

Check direct and alternating voltages.

Testing capacitors.

Testing diodes.

Testing gtransistors.

Power ON/OFF switch for Test-Phone functions.

The indication of the LED lamp and buzzer sound occur at the same time.

The LED indication of Power ON status.

SPECIFICATIONS

Amplifier Probe (183CB-A)	Frequency Detection : 1Hz ~ 12kHz
	Receiver Distance Sensitivity Control : < 50 cm
Tone Generator (183 CB-TFG)	Waveform : Square Wave
	Frequency : 1k Hz +/- 15%
	Over Voltage Protection : 80V DC
	Alternating Tone : Fast and slow
	Connection : RJ11 connector
Phone Tester (183CB-TFG)	U test : < 4.75V
	I test : < 2mA
	Resistance : 0 ~ 2 M
GENERAL
Operating Temperature & Humidity	0 degree C ~ 40 degreee C, 80% Max.
Storage Temperature & Humidity	-10 degree C ~ 50 degree C, 80% Max.
Power Source	Amplifier Probe : 9V battery.
	Phone Tester / Generator : 1.5V AA battery x 6
Dimensions	Amplifier Probe : 270 (L) x 50 (W) x 25 (H) mm
	Phone Tester / Generator : 143 (L) x 74.5 (W) x 33.6 (H) mm
Weight	Amplifier Probe : 125g (battery included)
	Amplifier Probe : g (battery included)
Safety Standard	, , ,
Accessories	Instruction Manual
	Batteries
	Carry pouch

特點

音頻接收器(183 CB-A)
1.具可調式音量控制鈕，依工作環境需要，選擇聲音大小。
2.外端接點，可與電話筒連接，方便接線人員操作。
3.使用之操作開關，利於節省電力，延長電池壽命。
4.連線操作，電池使用壽命約100小時。

音頻發射器(183 CB-TFG)
● 搭配音頻接收器(183 CB-A)，可以分辦或追蹤纜線或集團線中之一條，而不需要破壞線的外層絕緣體。
● 有導通測試和分辨電話線極性的功能。
● 機殼內有音頻選擇推鈕，可視工作環境實際需要作音頻快速或緩慢的選擇。
● 有兩顆雙色LED，可以偵測Line 1和Line 2的電話線極性。
● 設計有鱷魚夾和RJ11四芯的接頭。
● 導通測試只限Line1 LED來判別。

規 格

音頻產收器(183 CB-A)
音頻接收器	1Hz~12kHz
感應接收距離	< 50cm
感度控制旋鈕	ˇ
感應端子	固定式
使用電池	9V(6F22) × 1
外形尺寸	230(長)×56(寬)×27(高)mm
重量(含電池)	約125公克
音頻發射器與電話系統檢測計(183 CB-TFG)二合一
波形	方波
頻率	1kHz±15%
過載保護	80V DC
過載保護	快速與緩慢
電話接頭	RJ11
使用電池	1.5V (AA) × 6
外形尺寸	143(長)×74.5(寬)×33.6(高)mm
重量(含電池)	約318公克
電話系統檢測計
較響亮的喇叭	ˇ
導通測試	ˇ
檢查額定電阻	ˇ
檢查額定電壓(AC/DC)	ˇ
檢查額定電容	ˇ
檢查額定二極體	ˇ
一般敘述
操作溫濕度	0°C-40°C Z大相對濕度80%
儲存溫濕度	-10~50C, Z大相對濕度80%
安規條款
