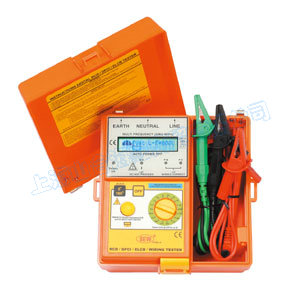

1812 EL ELCB Testers
Up To 500mA
|
 |
|
|
FEATURES |
| |
 2 Lines x 16 Characters L.C.D. |
| Very low consumption. |
| Microprocessor controlled. |
| Menu Driven. |
| Accurate digital readout of disconnection time. |
| Automatic data hold function. |
| Zero crossing circuitry permit testing at 0 degree or 180 degree. |
| Disconnection phase polarity shown on L.C.D. display. |
| Auto-off and Off override. |
| Polarity trip indicator (positive or negative phase). |
| Wiring polarity indicator. |
| Measure voltage between line and earth before testing. |
| CAT III 240V. |
|
|
|
| SPECIFICATIONS |
| |
| Current Settings |
3mA, 5mA, 7mA, 10mA, 15mA, 20mA, 30mA, 35mA, 50mA, 100mA, 125mA, 150mA, 175mA, 250mA, 300mA, 375mA, 500mA |
| Current Selection |
Rotary switch selector |
| Phase Start Selection 0 degree and 180 degree |
Referenced to Earth Yes |
| Over-temperature Protection |
Yes (3 sensors) |
| Wiring Correctness Indication |
Yes (LCDs) |
| Trip Indicator |
Yes (LCD) |
| Phase Polarity Trip Indicator |
Yes (LCD) Referenced to Earth |
| Operating Voltage (L-E) 50Hz or 60Hz |
1812EL-A : 240Vac, 1812EL-B : 230Vac, 1812EL-C : 220Vac, 1812EL-D : 110Vac |
| Voltmeter (L-E) |
20Vac - 280Vac |
| Timer Resolution |
1mS (max time = 2.999s) |
| Timer Accuracy |
+/- 2% +/- 2mS |
| Current Accuracy |
+/- 5% +/-1mA |
| Voltmeter Resolution |
1Vac |
| Voltmeter Accuracy |
+/- 2% +/- 1Vac |
| Operating Temperature |
-5 degree C to 45 degree C |
| Storage Temperature |
-10 degree C to 85 degrcc C |
| Power Source |
1.5V (AA) x 8 batteries, Bat OK Led = Vbat > 7.5V, measure battery voltage at start up |
| Dimensions |
170(L) x 165(W) x 92(D) mm |
| Weight |
Approx. 1020g (battery included) |
| Accessories |
Test leads (TEL-1812), shoulder belt (BET-1800), instruction manual, batteries |
|
