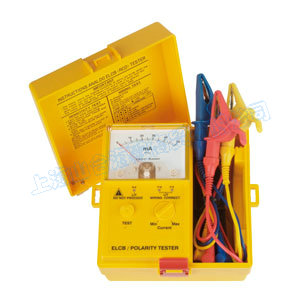

1810 EL ELCB Testers
50mA
Analog

FEATURES

Taut Band movement.
Simple operation.
Wiring check.
Robust.
Can be used on 2 wires L-E (ELCB/RCCB/GFCI tester).
Can be used on 3 wires L-E-N (with wiring check).
No batteries required.
Sense automatically 50 or 60 Hz.
Current injected in phase with the voltage.
Other voltage optional (110V).
, .

SPECIFICATIONS

Current Settings	10-50mA@230Vac
Current Selection	Knob
Frequency of Operation	50/60 Hz Sinusoidal
Over-Temperature Protection	No
Operating Voltage (L-E)	230 Vac +/- 15%
Meter Accuracy	+/- 1% of full scale
Protection	Fused (200mA 250V)
Operating Temperature	-5 degree C to 45 degree C
Storage Temperature	10 degree C to 85 degree C
Battery	None
Dimensions	170(L) x 165(W) x 92(D) mm
Weight	Approx 730g
Accessories	Test leads (TEL-1810)
	Shoulder belt (BET-1800)
	Instruction manual

特點

● 吊線式高品質(zhì)防震錶頭。
● 操作簡易。
● 可做L-E的兩線測試(ELCB/RCCB/GFCI)測試。
● 可做L-E的三線測試(檢測接線正確與否)。
● 50Hz或60Hz都能適用。
● 不必使用電源 (電池)。
● 有不同電壓可以選擇(110V或230V)。
● 符合。

規(guī) 格 (23°C±5°C ＜80%R.H.)
