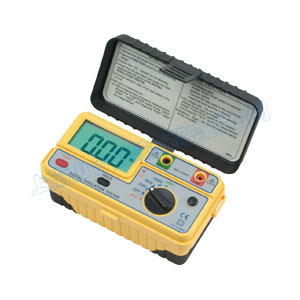

1160 IN Insulation Testers
Up To 1 kV (Digital)
|
 |
|
|
FEATURES |
| |
 A LCD indicated instrument for Insulation (M Ohm), Resistance (Ohm) and AC Voltage. |
| Three insulation test voltages (DC V) : 250V, 500V, 1000V. |
| 3-1/2 digital LCD (2000 counts). |
| 68 x 34mm (1.338" x 2.677") large LCD display. |
| Automatic curcuit discharge. |
| Test insulation at rated voltage into a 1mA load. |
| 200mA resistance tests short circuit test current. |
| AC voltage measurement. |
| Fuse protectin. |
| Data hold function. |
| CAT III 600V. |
| BS 16th edition. |
|
|
|
| SPECIFICATIONS |
| |
| INSULATION RESISTANCE |
|
| Test Voltage (DC V) |
250V/500V/1000V |
| Output Voltage Open Circuit |
+ 10% |
| Measuring Ranges (Auto) |
0-20/0-200/0-2000M Ohm |
| Output Current |
1mA DC |
| Accuracy |
0-20M Ohm : +/- (1.5%rdg+5dgt), 0-200M Ohm : +/- (2.5%rdg+3dgt), 0-2000M Ohm : +/- (5%rdg+5dgt) |
| AC VOLTAGE |
|
| Range |
0-600V |
| Resolution |
1V |
| Line Frequency Range |
40-120Hz |
| Accuracy |
+/- (1.5%rdg+3dgt) |
| RESISTANCE TESTS |
|
| Measuring Range |
0 - 200 Ohm |
| Resolution |
0.1 Ohm |
| Shot Circuit Terminal Current |
200mA DC min |
| Open Circuit Terminal Voltage |
4V DC min |
| Accuracy |
+/- (1.5%rdg+3dgt) |
| GENERAL |
|
| Impedance |
10M Ohm |
| Power Source |
1.5V (AA) x 8 |
| Dimension |
175(L) x 85(W) x 75(H)mm |
| Weight |
approx. 600g (battery included) |
| Accessories |
Test leads, fuse (05.A 250V), shoulder belt, carrying case, instruction manual, batteries |
|
| 特 點 |
● 具有量測絕緣阻抗(MΩ)、交流電壓(ACV)和
導通測試(Ω)三種功能。
● 三種量測絕緣阻抗測試電壓供選擇：250V、500V
、1000V。
● 3-1/2位液晶顯示器。
● 液晶顯示器作背光設計。
● 電容自動放電功能。
● 讀值鎖定。
● 自動換檔功能。
● 保險絲保護設計。
●
● 符合CAT Ⅲ 500V
|
|
| 規 格 (23°C±5°C ＜80%R.H.) |
| 絕緣阻抗(MΩ) |
|
|
| 量測檔位(DCV) |
250V / 500V / 1000V |
| 量測範圍 |
0-20MΩ / 0-200MΩ / 0-2000MΩ |
| 測量電壓Z大容許 |
額定電壓 +10% |
| 準確度 |
0-20MΩ : ±(1.5%讀值+5位數)
0-200MΩ : ±(2.5%讀值+3位數)
0-2000MΩ : ±(5%讀值+5位數) |
| 輸出電壓 |
1mA DC |
| 交流電壓(ACV) |
|
|
| 量測範圍 |
0-500V ( 40-120 Hz) |
| 準確度 |
±(1.5%讀值+3位數) |
| 導通測試(Ω) |
|
|
| 量測範圍 |
0-200Ω |
| 解析度 |
0.1Ω |
| 準確度 |
±(1.5%rdg+3dgt) |
| 一般敘述 |
|
|
| 外形尺寸 |
175(長)×85(寬)×75(高)mm |
| 重量 |
約600克(含電池) |
| 使用電池 |
1.5V (AA ) × 8 (顆) |
|
|
|
