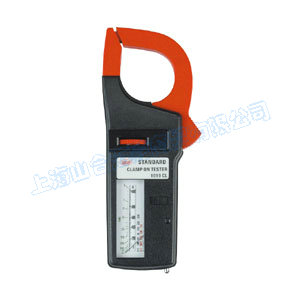

  • 臺灣標準電機SEW儀器儀表--1010 CL Rotary Scale Clamp Meter ACA: 1000A / ACV: 750V

  •

    1010 CL   Clamp Meters
    Rotary Scale Clamp Meter
    ACA: 1000A / ACV: 750V
    1010 CL
    FEATURES

     Designed for measuring AC current, AC voltage, resistance
     Rotary scale which presents only one scale in windows at one time to avoid any possible reading errors.
     Pointer lock function freezes the reading in dimly lit or hard to reach places.
     Ohm range ideal for checking the continuity of relays, transformers and motor coils.
     TAUT BAND movement (1010 CL)
    特 點
    ● 可量測交流電壓(ACV)交流電流(ACA)和電阻值(Ω)。
    ● ST-375可作量測直流電壓(DCV)。
    ● 採用旋轉式刻度板。
    ● 指針鎖定推扭設計,方便識讀。
    ● 1010 CL採用吊線式高品質防震表頭。

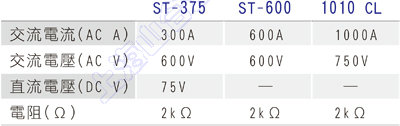

    規(guī) 格 (23°C±5°C <80%R.H.)
    AC A 10 / 30 / 100 / 300 / 1000A
    ±3% of F.S.(50/60Hz)
    AC V 150 / 300 / 750V
    ±3% of F.S.
    DC V ──
    2k
    ±3% of Scale length
    Frequency
    response
    50 / 60Hz for ACA 10A
    50-400Hz for ACA
    30 / 100 / 300 / 1000A
    Dimensions 227(L) × 73(W) × 33(D)mm
    Conductor size 52mm Max.
    Weight
    (battery Included)
    Approx. 460g
