NYLON WEB SLINGS
• Designed with high strength, wear resistant with material softness for good flexibility
• Leather tag stitched on sling shows load limit. All ratings are based on a 5-1 safety factor when sling is
new and unused. Red inner stitching full length shows through when sling needs replacing.
• Load limits are rated on basis of a minimum 1” diameter of curvature at all corners or points of load
contact without twists, kinks, or knots. The listed capacities are reduced in varying degrees depending
upon the uses and care to which the products are subjected.
• Ordering - select the catalog number, enter a dash (-) behind the catalog number, select the desired
length in feet. Example: 3711-4 this is a 2” wide, single ply, 4’ sling

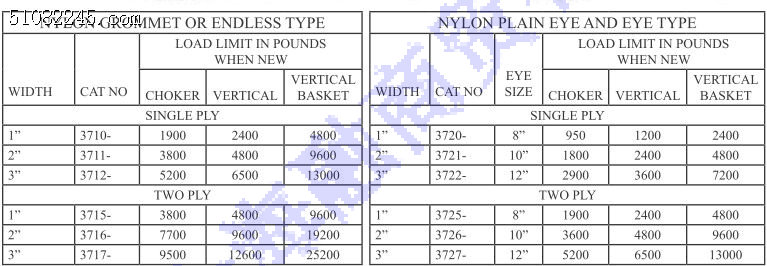

NYLON GROMMET OR ENDLESS TYPE
WIDTH CAT NO
LOAD LIMIT IN POUNDS
WHEN NEW
CHOKER VERTICAL
VERTICAL
BASKET
SINGLE PLY
1” 3710- 1900 2400 4800
2” 3711- 3800 4800 9600
3” 3712- 5200 6500 13000
TWO PLY
1” 3715- 3800 4800 9600
2” 3716- 7700 9600 19200
3” 3717- 9500 12600 25200
NYLON PLAIN EYE AND EYE TYPE
WIDTH CAT NO
EYE
SIZE
LOAD LIMIT IN POUNDS
WHEN NEW
CHOKER VERTICAL
VERTICAL
BASKET
SINGLE PLY
1” 3720- 8” 950 1200 2400
2” 3721- 10” 1800 2400 4800
3” 3722- 12” 2900 3600 7200
TWO PLY
1” 3725- 8” 1900 2400 4800
2” 3726- 10” 3600 4800 9600
3” 3727- 12” 5200 6500 13000

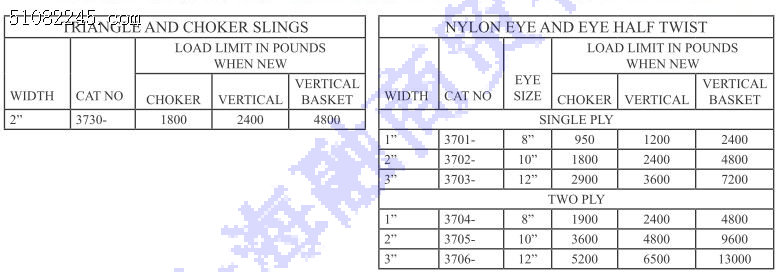

TRIANGLE AND CHOKER SLINGS
WIDTH CAT NO
LOAD LIMIT IN POUNDS
WHEN NEW
CHOKER VERTICAL
VERTICAL
BASKET
2” 3730- 1800 2400 4800
NYLON EYE AND EYE HALF TWIST
WIDTH CAT NO
EYE
SIZE
LOAD LIMIT IN POUNDS
WHEN NEW
CHOKER VERTICAL
VERTICAL
BASKET
SINGLE PLY
1” 3701- 8” 950 1200 2400
2” 3702- 10” 1800 2400 4800
3” 3703- 12” 2900 3600 7200
TWO PLY
1” 3704- 8” 1900 2400 4800
2” 3705- 10” 3600 4800 9600
3” 3706- 12” 5200 6500 13000

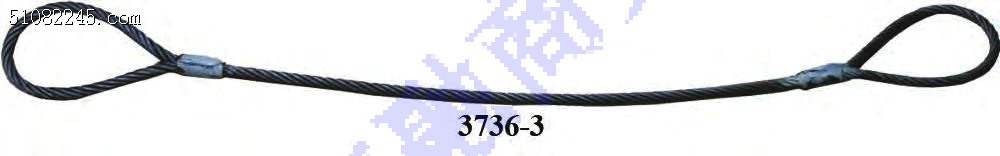

WIRE ROPE SLINGS
• Flemish eye-pressed sleeve splices
• Plain eye and eye slings
• Rated capacities for single leg slings
• 6 x 19 classification improved plow steel grade rope
• With independent wire rope core
• Ordering - select the catalog number, enter a dash (-) behind the catalog
number, select the desired length in feet. Example: 3736-3 this is a 3’ sling.
| |
|
LOAD LIMIT - TONS (2,000 LBS) |
|||
| DIAMETER |
CAT NO |
CONSTRUCTION |
VERTICAL |
CHOKER |
VERTICAL BASKET |
| 3/8” |
3736- |
6 X 19 |
1.2 |
0.93 |
2.5 |
| 1/2” |
3737- |
6 X 19 |
2.2 |
1.6 |
4.4 |
| 9/16” |
3850- |
6 X 19 |
2.7 |
2.1 |
5.4 |
| 5/8” |
3851- |
6 X 19 |
3.4 |
2.5 |
6.8 |
| 3/4” |
3852- |
6 X 19 |
4.9 |
3.6 |
9.8 |
| AVAILABLE FROM 3’ TO 20’ LENGTHS |
|||||
NYLON AUGER SLINGS
• Nylon webbing will not kink or curl
• Works at any angle
• Interwoven red yarn lets you know when sling should be replaced
• Cordura wear pad lining at each eye resists weathering, oil, grease, and
most alkalies
• Bright yellow slings are soft and hang straight
• No protective gloves needed for handling
• Outlasts wire rope 3:1 for auger application
CAT NO WIDTH LENGTH
2100 LB - LOAD LIMIT
3840 1” 8’ 6”
3841 1” 9’
3842 1” 10’
2800 LB - LOAD LIMIT
3843 1” 8’ 6”
3844 1” 9’
3845 1” 10’
